SVERO
Art no. 2212

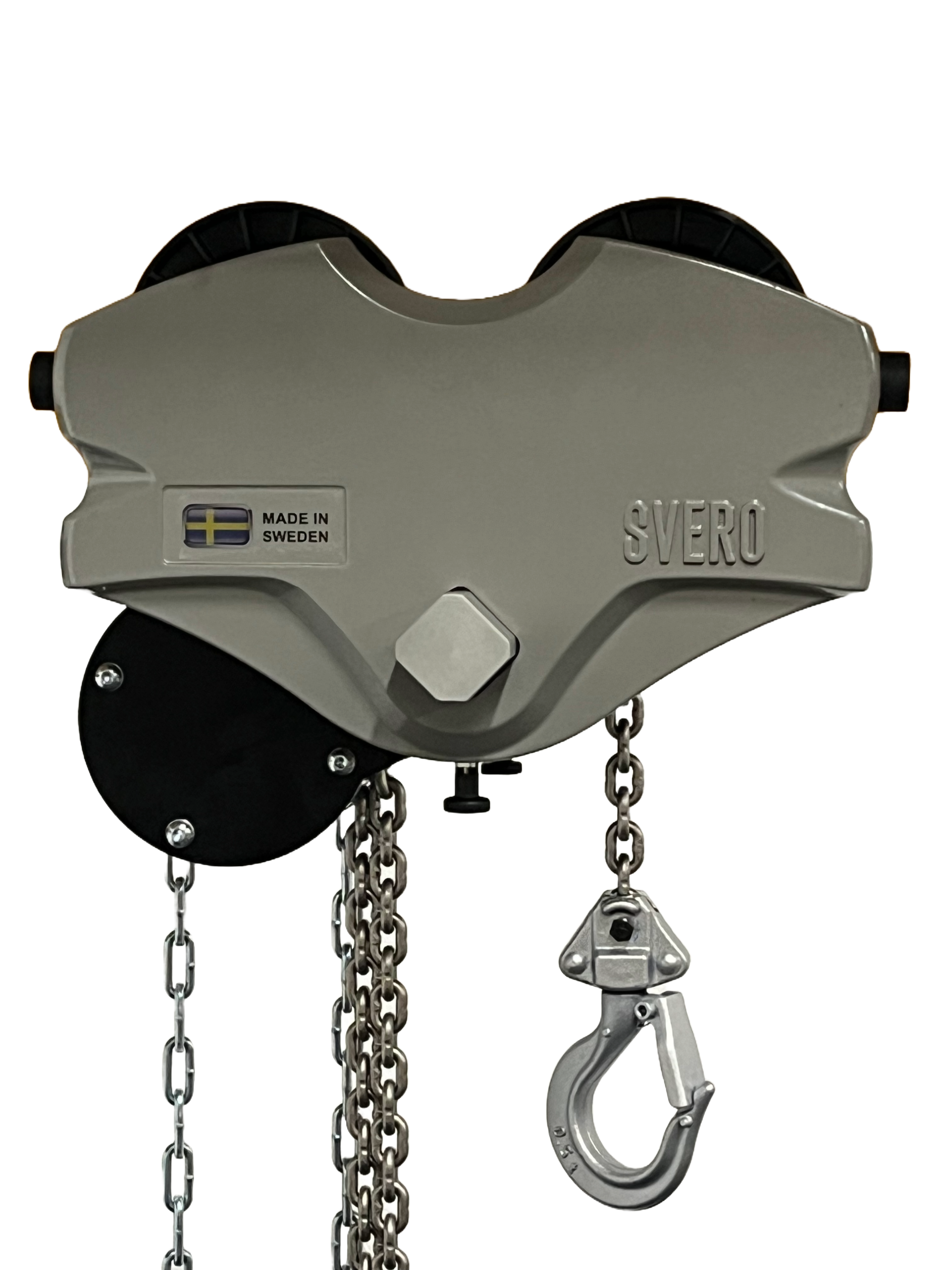

Smart Hoist 500 kg, extremely low built and low weight, 120-180 mm
SVEROs patented (SE 544 420 C2, European patent approved) integrated chain hoist and beam trolley of 500 kg. With a headroom of extremely low 150 mm and a weight of only 10.1 kg, it is completely unique. Fits very well in tight spaces, like the nacelle in a windmill, and can easily be mounted and dismantled by one person. Easy to bring along between different places.
Order item
Manual
Print Description
- extremely low headroom, only 150 mm
- extremely light, only 10.1 kg
- simple and easy assembly for one person, quick lock
- specially adapted water and dust proof case as an accessory, easy to bring along
- easily adjustable for IPE, HEA, HEB or INP beams
- powder-coated aluminium sides and covers
- non-sparking, fiberglass-reinforced and ball-bearing plastic wheels
- test loaded with 1.5 x WLL
- safety factor 4:1
- working temperature -10° C up to +50° C
- test and CE certificates and manuals included
- traceable with unique SVERO serial number
Specifications
Art no.
2212
WLL
500
Beam width mm
110-180
Headroom (Hmin)
150
Test load
750
Safety factor
4:1
Standard lift
3
Weight, net
10.1
Marking
CE, WLL, BEAM WIDTH
Standard
SS-EN 13157
Brand
SVERO
