SVERO
Art no. 21123A

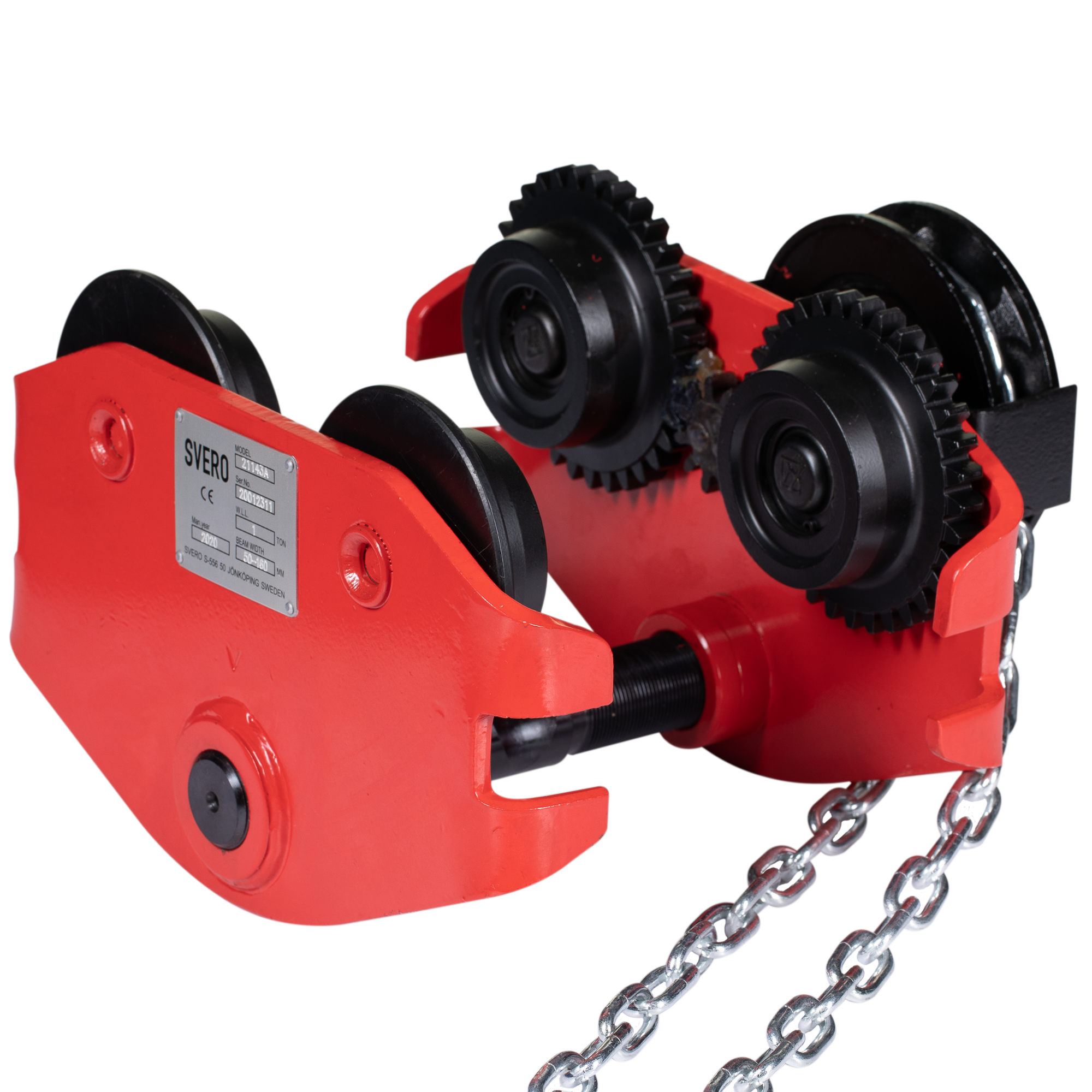

Beam Trolley 500 kg geared, maneuvre 3 m
SVEROs 500 kg geeared beam trolley is suitable for situations when you need more precise control of the movement. The low-built 3-part design is easy to assemble. An all-round Svero beam trolley for, for example, the smaller workshop or pump station.
In stock
Manual
Print Description
- can be moved simply and easily using the hand chain
- can be ordered with adapted operating height
- fits most chain hoists, both manual and electrical
- fits IPE, HEA, HEB and INP beams
- powder-coated steel sides
- adjustable left and right threaded suspension bolt
- test loaded with 1.5 x WLL
- working temperature -10° C up to +50° C
- test and CE certificates and manual included
- traceable with unique SVERO serial number
Specifications
Art no.
21123A
WLL
500
Beam width mm
50-160
Test load
750
Safety factor
4:1
Standard maneuver chain
3
Hand chain
5,0X23,7
Marking
CE, WLL, BEAM WIDTH
Standard
SS-EN 13157
Brand
SVERO
